Ever found yourself in the midst of a DIY project, eagerly reaching for your tools, only to realize you’re missing a crucial piece of the puzzle? Picture this: you’re about to tap a hole for an M5x0.8 screw, but you’re unsure about the right drill bit size to use. Fret not, as we’ve got you covered!
Key Takeaways
- Understanding M5x0.8 Thread Size: Know that “M” signifies metric thread, with M5 referring to major diameter and 0.8 representing thread pitch.
- Drill Bit Selection: Match the drill bit size with the tap size; for M5x0.8 tap, use a 4.2mm drill bit for accurate threading.
- Precision is Key: Use the correct drill bit size to align threads accurately and avoid issues during tapping for M5x0.8 screws.
- Drilling Process: Follow steps like selecting the right drill bit size, securing the workpiece, marking the spot, drilling, monitoring depth and angle, and cleaning the hole for precise results.
- Best Tapping Practices: Choose the right drill bit size, secure the workpiece, drill with precision, monitor depth and angle, and clean the hole to ensure successful tapping for M5x0.8 screws.
Understanding Thread Sizes
When it comes to understanding thread sizes like the M5x0.8, it’s essential to grasp the key elements that define them. Here’s a breakdown to help you navigate this aspect of your DIY projects effortlessly:
Thread Size Basics
Thread sizes are typically represented by two numbers, such as M5x0.8. The “M” signifies a metric thread, while the numbers following it provide specific details:
- M5: Refers to the major diameter of the thread, which in this case is 5 millimeters.
- 0.8: Represents the pitch of the thread, indicating the distance between each thread crest.
Understanding these components is crucial as they directly impact the choice of drill bit for tapping holes accurately.
Drill Bit Selection
Selecting the right drill bit for tapping an M5x0.8 thread involves matching the drill bit size with the tap size. For an M5 tap, which creates the thread for an M5 screw, you should opt for a drill bit that matches the tap size.
In this scenario, the recommended drill bit size for an M5x0.8 tap is a 4.2mm drill bit. This drill bit size allows for the proper threading of the hole to accommodate the M5x0.8 screw.
Practical Tip
To ensure precision and avoid any issues during the tapping process, it’s crucial to use the correct drill bit size. Using a drill bit that matches the tap size guarantees that the threads will align correctly when creating the hole.
By following this straightforward guideline, you can confidently proceed with tapping the hole for your M5x0.8 screw without any concerns about mismatched sizes affecting the integrity of the final assembly.
Understanding thread sizes and selecting the appropriate drill bit are fundamental steps in ensuring the success of your DIY projects that involve tapping holes for screws with specific thread sizes like the M5x0.8. By mastering this aspect, you can proceed with your projects smoothly and with confidence.
Correct Drill Bit Size for M5x0.8 Tap
To ensure precision and success in your DIY projects involving M5x0.8 screws, selecting the right drill bit size is crucial. The ideal drill bit size for tapping holes for M5x0.8 taps is 4.2mm. This specific size aligns perfectly with the M5x0.8 tap dimensions, facilitating the creation of accurate threads that match your screws seamlessly.
By using a 4.2mm drill bit, you can prepare the holes efficiently for the M5x0.8 tap, allowing you to thread them precisely to accommodate the corresponding screws. This careful matching of drill bit and tap sizes is essential for achieving a secure and robust connection between the screw and the material you are working with in your project.
When you drill the hole with the correct size, threading becomes a smoother process, reducing the likelihood of thread stripping or misalignment issues. This, in turn, leads to more professional-looking results and ensures the structural integrity of your project.
Remember, the key to successful tapping with an M5x0.8 tap lies in the meticulous pairing of the tap with the appropriate drill bit size like the 4.2mm variant. This simple but crucial step can make a significant difference in the outcome of your projects involving M5x0.8 screws.
Recommended Products
【Size】Include M5x0.8 M2 steel tap and 4.2mm M2 HSS drill bit with round shank,all stored in a storage box for easy carrying.
【Tap Size】Length: 58mm, Thread Head: 21mm, Square Head: 4.0mm x 4.0mm (L*W), Shank Diameter:5.0mm, Pitch: 0.8mm.
High-Quality Material: The m5 tap and drill bit is made from high-speed steel with a titanium coating, ensuring durability and resistance to wear.
Drilling Process for M5x0.8 Tap
When it comes to tapping a hole for an M5x0.8 screw, the drilling process plays a crucial role in ensuring a precise fit. Here’s a step-by-step guide to help you achieve optimal results:
Recommended Products
【Specifications】Includes M5x0.8 spiral flute tap and 4.2mm M2 HSS drill bit. Comes with a compact storage case for easy portability.
PROFESSIONAL-GRADE BRAD-POINT DRILL BIT: Fisch's premium drill bit ensures clean, precise holes with minimal effort. The chrome-vanadium coating maintains sharpness longer, reducing heat build-up during woodworking projects

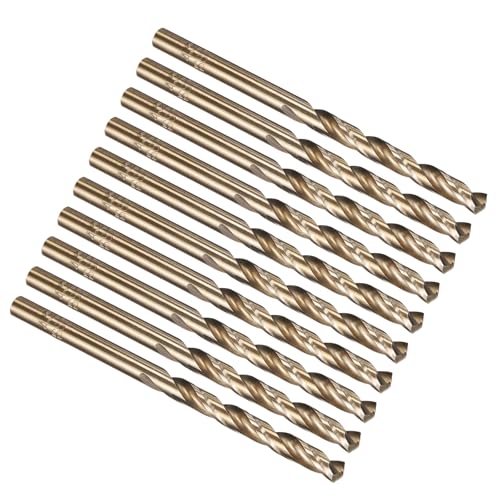

Cobalt Steel - Manufactured From M35 5% Cobalt Steel, With Molybdenum And Cobalt Added To Creates A Hardened Alloy, Measuring Rockwell Hardness Up To 65, For Much Faster Cutting And Extra Longer Life Span, With Up To 10 Times When Compared with an Average HSS Drill Bit.
Select the Right Drill Bit Size
To prepare for tapping an M5x0.8 thread, you’ll need a 4.2mm drill bit. This specific size is recommended to create a hole that perfectly accommodates the M5x0.8 tap, allowing for seamless threading without any play or misalignment issues.
Secure the Workpiece
Before drilling, make sure your workpiece is securely clamped in place. This stability will not only enhance the accuracy of your drilling but also prevent any potential accidents during the process.
Mark the Drilling Spot
Use a center punch to mark the exact spot where you want to drill the hole. This preliminary marking will help guide your drill bit to ensure it enters the material precisely where intended.
Start Drilling
With the 4.2mm drill bit securely in your drill chuck, steadily position it over the marked spot on the workpiece. Apply gentle pressure as you start drilling to create a clean and precise hole.
Monitor Depth and Angle
Keep a close eye on the drilling depth to ensure you reach the appropriate depth for the M5x0.8 tap. Additionally, maintain a perpendicular angle to the workpiece surface to prevent any issues with thread alignment.
Clean the Hole
After drilling, remove any metal shavings or debris from the hole using a brush or compressed air. A clean hole is essential for smooth threading and a secure connection with the M5x0.8 tap.
By following these steps meticulously and using the correct tools, you’ll be able to drill precise holes for M5x0.8 taps, leading to professional-looking results and sturdy connections in your DIY projects.
Best Practices for Tapping Threads
When tapping threads for M5x0.8 screws, following best practices is crucial to achieving precise and secure results. Here are some essential guidelines to ensure successful thread tapping:
Recommended Products
ESSENTIAL SIZES & ORGANIZED CASE: Includes 8 frequently used metric whole-number sizes: 3, 4, 5, 6, 7, 8, 9, and 10mm. Neatly organized in a durable, bright yellow plastic indexed storage case for easy transportation, secure storage, and instant size identification.
Size：Metric M5*0.8 straight flute thread tap total length 61.4 mm/2.42in, cutting edge length 23.5 mm/0.93in; Twist Drill Bits diameter 4.2 mm/0.165in, length 76 mm/2.99in, cutting edge length 42.3 mm/1.67in, Standard size suitable for M5*0.8 drilling and tapping
PACKING LIST: 1 pack of drill bit in 4.2mm(0.17 inch ≈ 11/64 inch) cutting diameter, 35mm/1.38 inch flute length, 75mm/2.95 inch overall length, 135-degree split point
Choosing the Right Drill Bit Size:
Selecting the correct drill bit size is fundamental for tapping threads effectively. For M5x0.8 taps, use a 4.2mm drill bit to prepare the hole for threading accurately.
Securing the Workpiece:
Before tapping the threads, ensure that the workpiece is securely clamped in place. This stability will prevent any movement during the drilling and tapping process, leading to more precise results.
Marking the Drilling Spot:
Mark the exact spot where you intend to drill the hole for the screw. Using a center punch to create a small indentation can help guide the drill bit and ensure it stays on target.
Drilling with Precision:
When drilling the hole, maintain a steady hand and apply consistent pressure. Drill perpendicular to the surface to ensure the hole is straight and properly aligned for threading.
Monitoring Depth and Angle:
Pay close attention to the drilling depth to ensure it matches the length of the screw for optimal threading. Additionally, keep an eye on the angle of the drill bit to prevent it from deviating from the desired direction.
Cleaning the Hole:
After drilling, remove any debris or metal shavings from the hole to prepare it for tapping. A clean hole will facilitate smoother threading and help prevent any obstructions during the process.
By adhering to these best practices for tapping threads for M5x0.8 screws, you can enhance the quality and precision of your DIY projects, ensuring robust and reliable connections every time.
Conclusion
You now understand the significance of using a 4.2mm drill bit for tapping M5x0.8 screw holes in your DIY projects. By following the outlined steps and best practices, you can ensure accurate threading and secure connections. Remember to select the right drill bit size, secure your workpiece properly, drill precisely, monitor depth and angle, and clean the hole thoroughly. These simple yet essential tips will help you achieve precise and reliable results when working with M5x0.8 screws. Happy DIYing!
Frequently Asked Questions
What drill bit size is recommended for tapping holes for M5x0.8 screws in DIY projects?
It is recommended to use a 4.2mm drill bit for tapping holes for M5x0.8 screws in DIY projects to ensure accurate threading and secure connections.
What are the essential steps in the drilling process when using a 4.2mm drill bit for M5x0.8 screws?
The essential steps include selecting the right drill bit size, securing the workpiece, marking the drilling spot, drilling with precision, monitoring depth and angle, and cleaning the hole.
What are some best practices to follow when tapping holes for M5x0.8 screws in DIY projects?
Best practices include clamping the workpiece securely, drilling perpendicular to the surface, and cleaning the hole thoroughly after drilling for precise and reliable results.
